For Makita Li-Ion Battery 5 Strings of 18V 21V BMS Tool Lithium Battery Protection Board Multiple Protection Function Swrench

Features:
1.The protection board is for 5 series Li-ion batteries, mainly used for electric power tools.
It uses special IC for 5S lithium batteries as processor to detect real-time voltage, charge and discharge current and ambient temperature of each battery.
2.Stable various protective functions for charging and discharging, such as overcharge protection, over-discharge protection and short circuit protection.
3.Low power consumption,the working current is about 25uA and quiescent current is about 6uA.
4.Choosing the correct protection board and applying it appropriately is vital to the longevity your batteries.

Specifications:
Operating voltage: 18V
Charging current: 1~3A
Discharge current: 10A (adjustable)
Overdischarge protection current: 35±10A

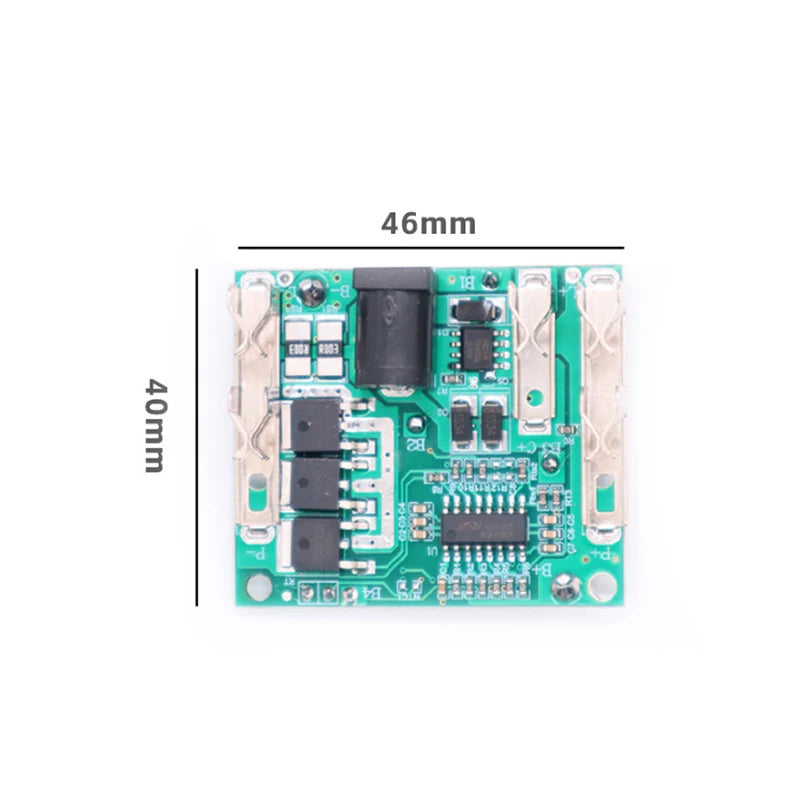

Protection size: 46*40*3.6 (length width)
Charging voltage: 21~24V
Applicable battery: lithium iron phosphate, lithium manganese, lithium cobalt, ternary, etc
Application: 5 series 21V power tools screw knife charging hand drill lithium battery special protection plate
Protective paint for components: waterproof, electric and moisture-proof

Package include :
1PC*Lithium battery protection panel

Note:
1. Please allow 0.5-1cm differences due to manual measurement.
2. Due to the light and screen difference, the item's color may be slightly different from the pictures.
