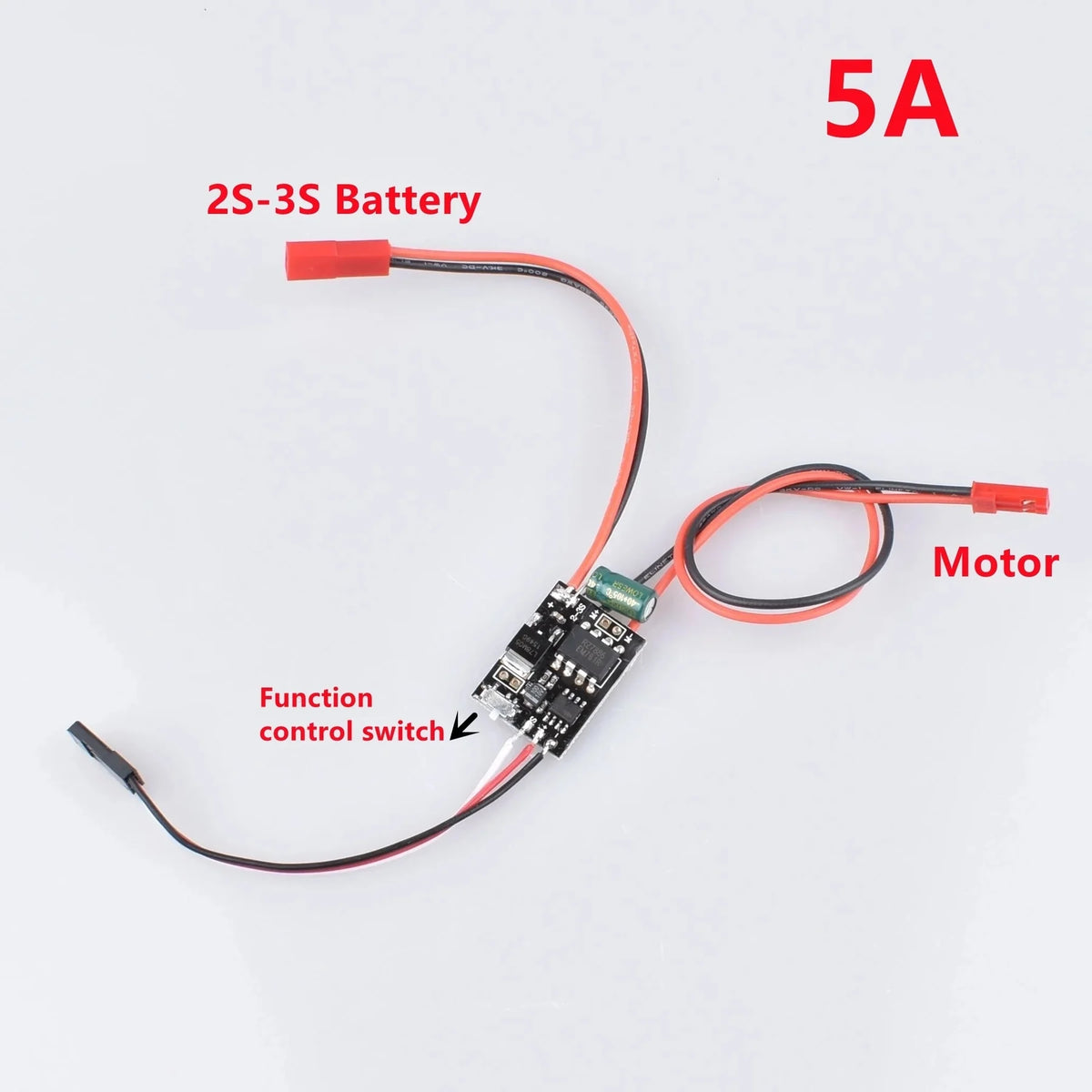

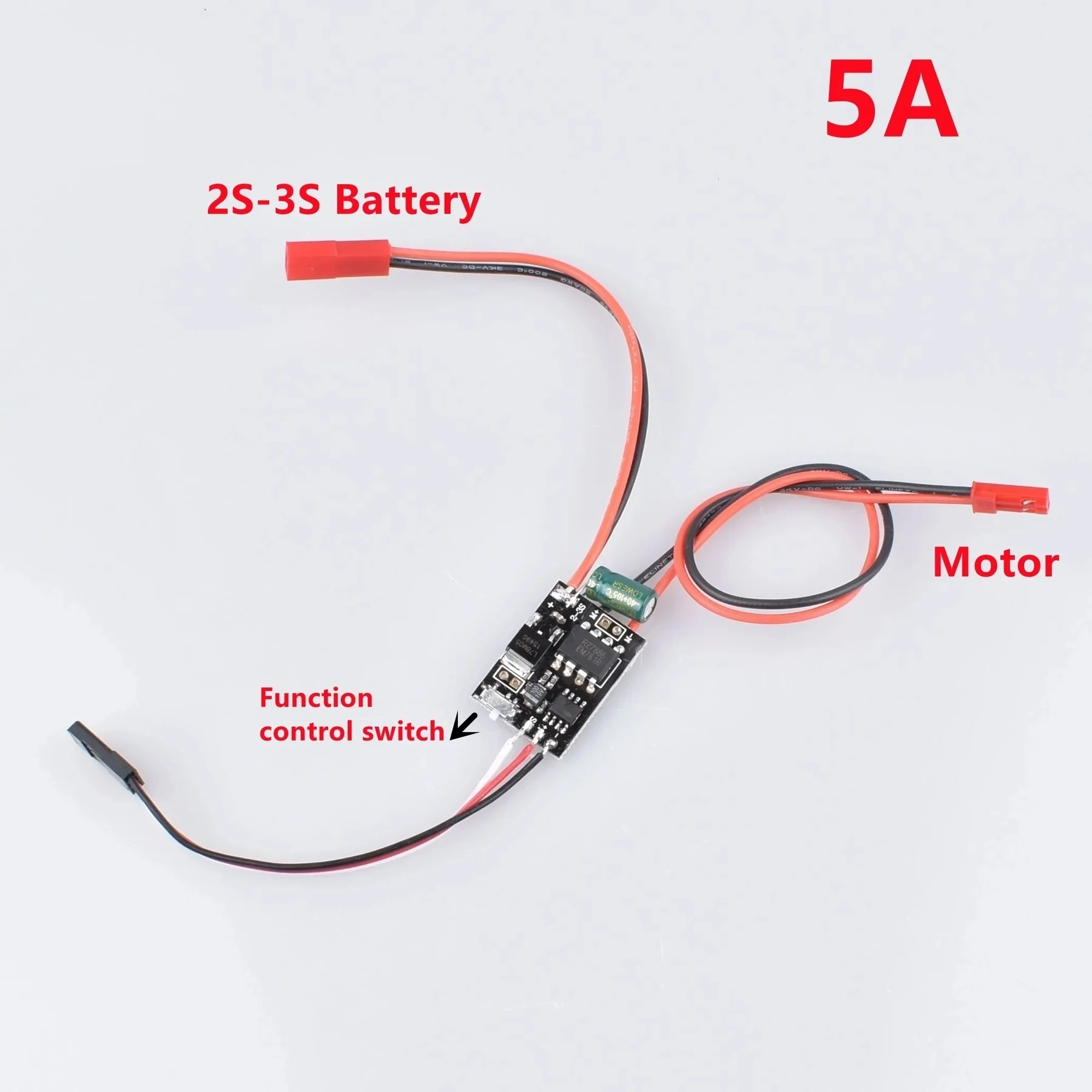

Two-way 5A ESC 2S-3S Brushed ESC Forward/Backward Speed Controller for RC Cars/Boats Spare Parts

Two-way 5A ESC 2S-3S Lithium Battery Brushed ESC Forward/Backward Speed Controller for RC Cars/Boats Spare Parts

Parameter:

6v-14v

Single 5A, single peak 7A (for 2/3S lithium battery, etc., not 4S)

(Typically 130, 260 motor, current<5A, may be suitable for this ESC)

5v 1.5A maximum output bec

Size: 28x21mm

Remote sites in fixed PWM 1500us (+50 -50), 900-1100 minimum and maximum run automatically adapt 1900-2100

Bring power tips (motor will hear "beep" sound, the prompt power)

Start with the neutral position (throttle channel 1500, you will hear the motor "beep", ESC start)

With out of control protection (missing signal (in the accident, the signal line is broken), for safety, motor protection, need the throttle back, re-unlock.

Overheat protection (130 degrees) with overcurrent protection

Brake mode (F/B/R)

That is, the positive and negative braking mode provides a reverse function, which is usually used for daily training and is suitable for high-speed cars.

In this mode, when the throttle stick is quickly hit from the forward direction to the reverse direction, the motor is only the brake (the brake force increases with the degree of the reverse lever)

If the forward hits the neutral point (not to the counter-bar area), the ESC does not drive the motor, but the car can coast by inertia.

You must stay at the median point for about 0.3 seconds before you can reverse the car.

The ESC output is smaller when reversing, which is 75% of the advance.

Forward/reverse mode (F/R) default

The positive pole advances, the reverse pole retreats, and the middle drag brake. Suitable for high-end climbing cars and slow toy cars.

This mode is as large as the forward and reverse ESC output.

Package:

1PC x ESC
